通风器（气楼）安装在屋面顺坡方向上，可根据厂房的局部热量及局部排风需求的地方进行点式安装或大批量的安装， 2000mm以下喉口气楼基础骨架可以直接做在檀条上面，不需要增加基础钢，可做保温型，可做釆光型以增加室内的釆光度。可加装防鸟网、防虫网，可做手动控制，可做消防联动电动（遥控）控制来调节排风量的大小及开启关闭排风作用，防腐要求高的厂房，挡雨板、外围板及端头板均可釆用FRP防腐板生产安装。

Ventilators (gas towers) are installed along the slope of the roof. Point type installation or mass installation can be carried out according to the local heat and local exhaust demand of the plant. The foundation skeleton of the throat gas tower below 2000mm can be directly installed on the purlins. It does not need to add foundation steel. It can be used as thermal insulation type, and it can be used as daylighting type to increase indoor daylighting. Bird screen, insect screen, manual control and fire linkage electric (remote control) control can be added to adjust the air exhaust volume and open and close the air exhaust function. FRP anti-corrosion plates can be used for production and installation of rain shields, peripheral plates and end plates in plants with high anti-corrosion requirements.

画册-副本-4_05

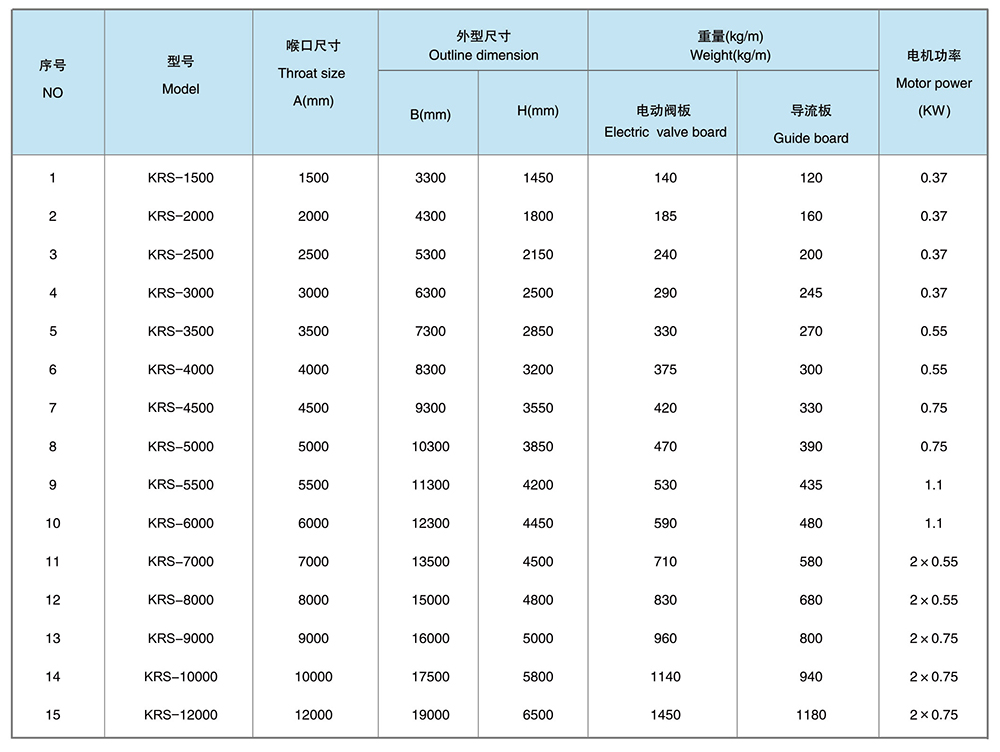

流线型高容量通风器(气楼)外型及重量

streamlined high-capacity ventilator (air tower) appearance and weight

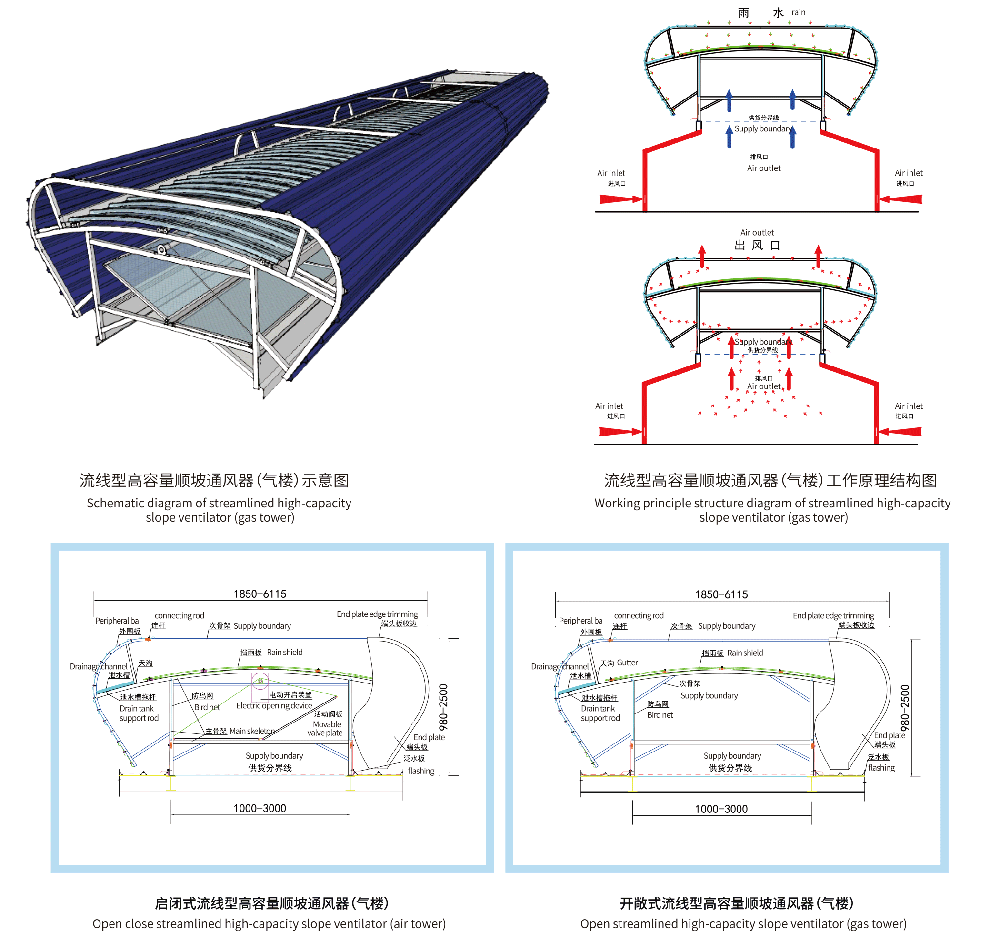

流线型通风器(气楼)是由骨架、外围板、挡雨板、天沟、泄水槽、阀板、导流板、泛水板、电动或手动执行器组成。该通风器(气楼)釆用流线型结构，内外气流状态最佳，承受风压能力好，结构尺寸小，流量系数大，是十分理想的结构，可根据使用环境要求进行合理选材(彩钢、不锈钢、铝合金板、玻璃钢(FRP )等)。

口尺寸可分为1成、殊、25*、咪、做、4米、4映泳、皿、淞多种聯(也可邮户需制造)。

Streamlined ventilator (air tower) is composed of skeleton, peripheral plate, rain shield, gutter, drain tank, valve plate, deflector, flashing plate, electric or manual actuator. The ventilator (gas tower) adopts streamlined structure, with the best internal and external air flow status, good wind pressure bearing capacity, small structure size, and large flow coefficient. It is an ideal structure, and can be reasonably selected according to the requirements of the use environment (color steel, stainless steel, aluminum alloy plate, glass fiber reinforced plastic (FRP), etc.).

According to the size of the vent, it can be divided into 1.5 m, 2 m, 2.5 m, 3 m, 3.5 m, 4 m, 4.5 m, 5 m, 5.5 m,6m and other specifications (non-standard design and manufacturing can also be carried out according to user needs).
