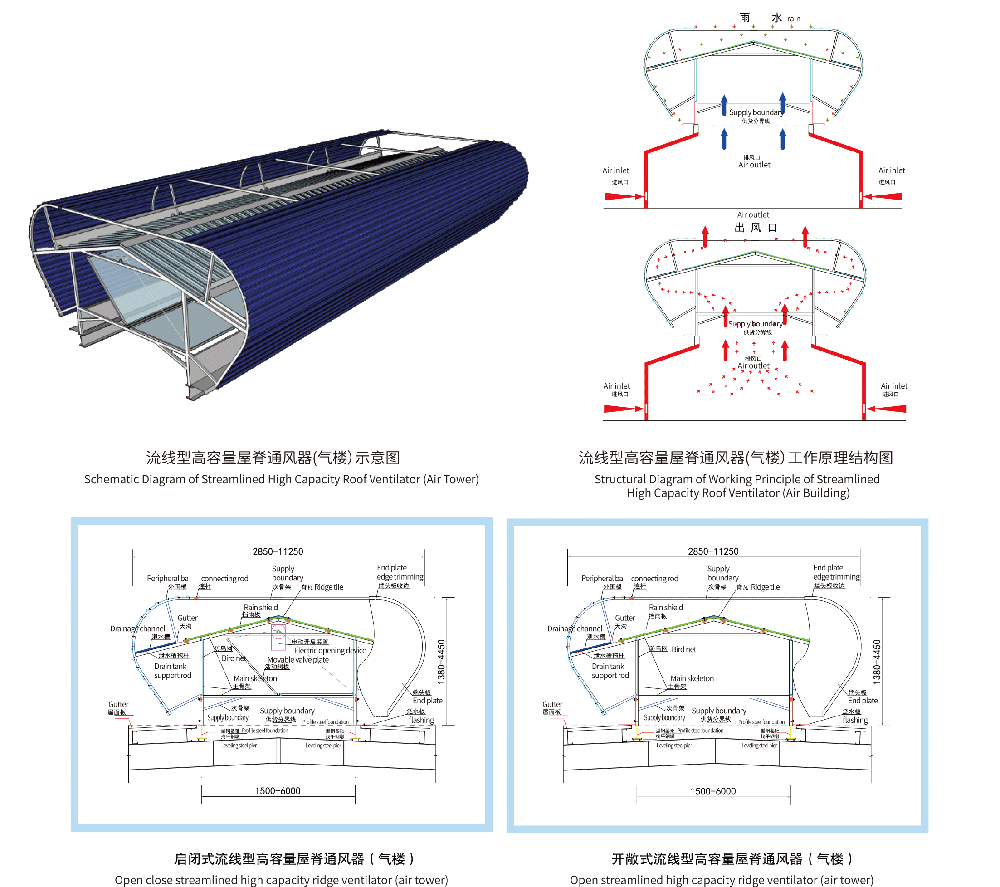

该通风器(气楼)安装在屋脊上。因热气流向上的原理，可根据厂房局部热量及局部排风需求的地方进行点式安装或大批量安装；喉口尺寸大，排风效果好，是高热、高污染自然换气排风的理想首迭产品，可做采光型以增加室内的采光度，可做保温型，可加装防鸟网、防虫网，可做手动控制，可做消防联动电动(遥控)控制来调节排风量的大小及开启关闭排风作用，防腐要求高的厂房，挡雨板、外围板及端头板均可采用FRP防腐板生产安装。
The verilater(air tower) is instaled en the roef ridge. Due to he prineipls of upward low drecfon of hot air, spot instalation or mass instalation canbe camied cut acoorting to the calheat and beal exhaust demand of the plant; win large throat size and good venllatien effect it is an iseal procuctol choice for natural venlilation and venllatien win high heat and poluien. It can be used as a daylighing type to inerease the insoor lghing l can beused as a themal insulalion lype. It can be equipped with bird screen and insect screen. Il can be used as a manual contrdl. It can be used as a fireInkage electie (remote) contrd to adjust the size of the exhaust air volume and open and ckse the eshaust tuncion. It can also be used forplns wthhigh ann-comosion requrements, rain shields The pemrpheral plate and end plate can be produced and instaled with FRP armnl-comosion plate.

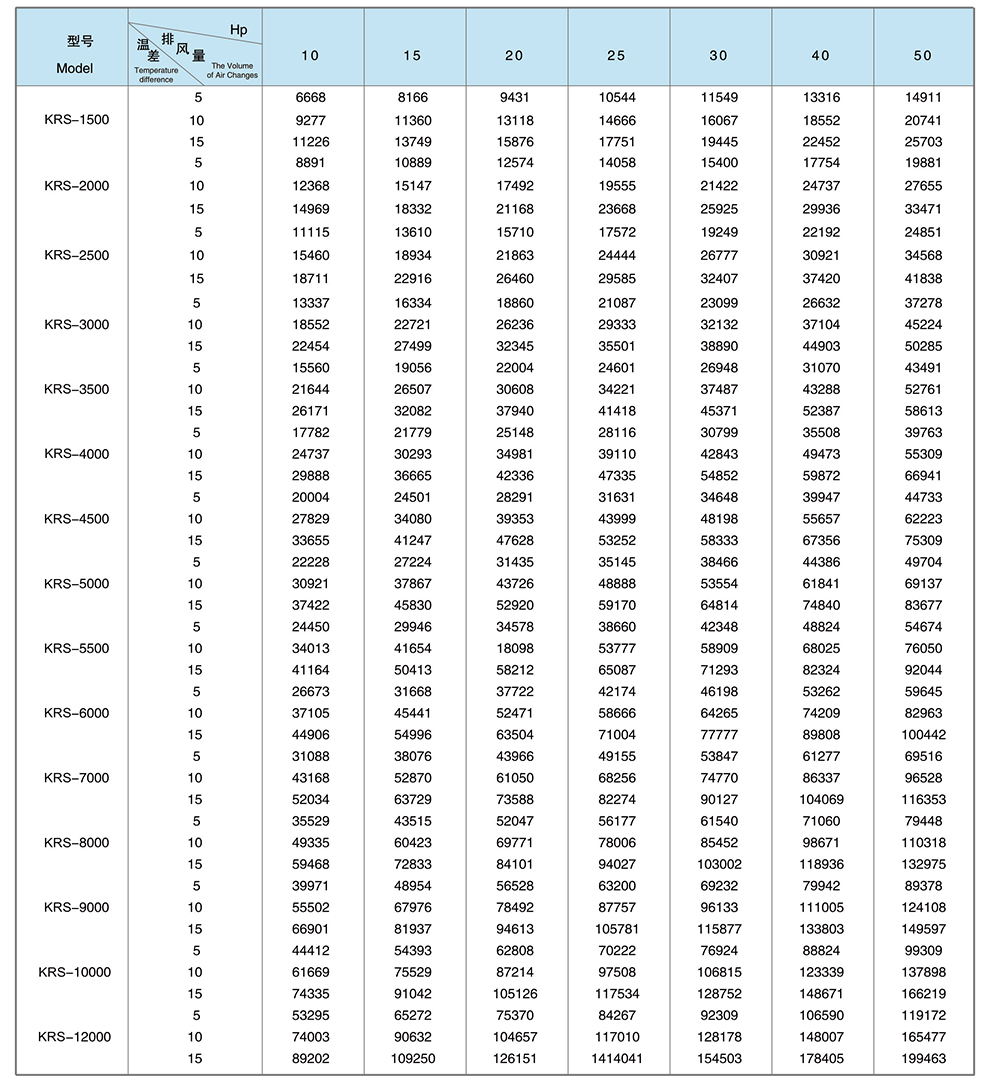

屋顶通风器排风量计算值(m3/h.m ) (u=0.84)
Calculated value of exhaust airvolume of series roof ventilator (m3/h. m) (u=0.84)
注：以上所列排气参考值的计算条件为：设定室外温度201;重力加速度9.8m/sA2 ;室外平均风速1.2m/s;孔口流量系数为0.84。
Note: The calculation conditions of the exhaust reference values listed above are: set the outdoor temperature to 20°c; Gravity acceleration 9.8 m/sA2; Outdoor averse wind speed 1.2m/s; The orifice flow coefficient is 0.84.
