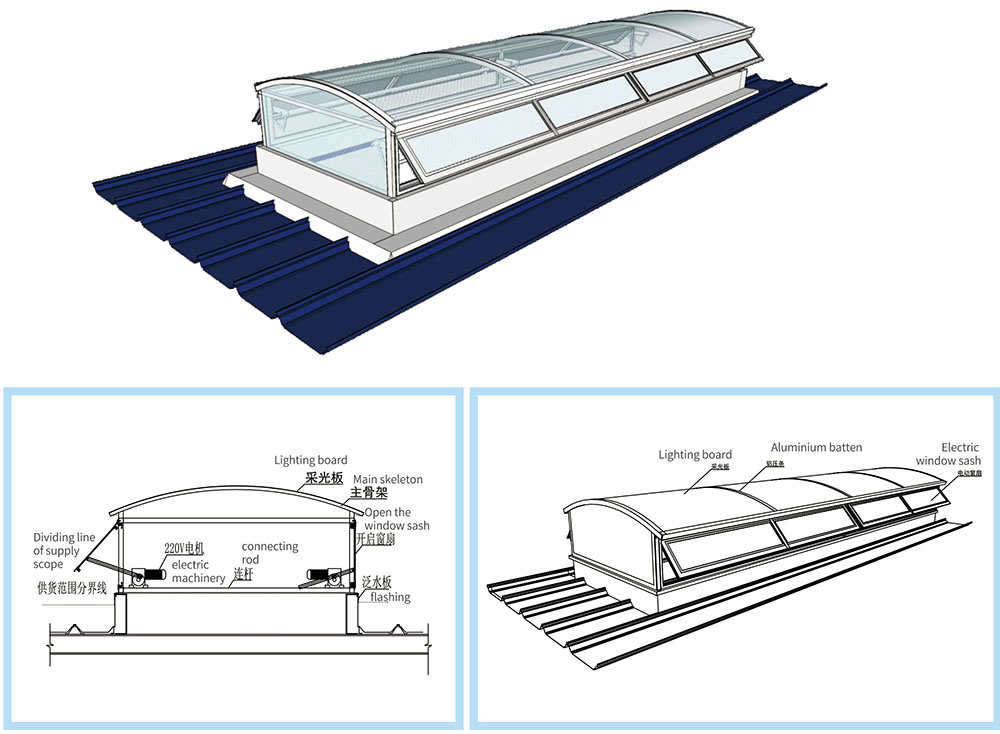

圆拱型侧开式釆光排烟天窗集采光与排烟于一体，该天窗适合以采光为主，通风为辅的建筑。四重防水结构设计，所有骨架采 用螺栓连接，无钉无胶可有效防水，在具备采光的同时，侧窗可开启30。-45。的角度进行通风，可加装防虫网、防鸟网，可与消 防联动，可遥控控制、手动控制，来控制通风器的启闭及开启角度。适用于跨度较大的公共场所，如地铁航站一采光面积大， 通风量高、阴雨天开启。
Nuosti round arch side open daylight and smoke exhaust skylight integrates lighting and smoke exhaust, which is suitable for buildings with lighting as the main and ventilation as the auxiliary. Four layer waterproof structure design, all skeletons are connected by bolts, and no nails or glue can effectively waterproof. With daylighting, the side window can be opened at an angle of 30-45 ° for ventilation. Insect proof nets and bird proof nets can be added, which can be linked with fire protection, and can be controlled remotely or manually to control the opening, closing and opening angle of the ventilator. It is applicable to public places with large span, such as subway terminals with large lighting area, high ventilation and open in rainy days.
窗扇釆光材料选择：
1、 阳光板（PC ） （10mm、12mm、16mm ）；
2、 釆光板（FRP ） （1.5mm、2.0mm、3.0mm ）；
Selection of window sash lighting materials:
1.Sunshine board (PC) (10mm, 12mm, 16mm);
2.Daylighting panel (FRP) (1.5mm, 2.0mm, 3.0mm);
尺寸选择：
1、 基座宽度（净尺寸）；2m、3m（常用尺寸）、4m、5m、6m;
2、 基座长度（净尺寸）：3mxn（n>1的整数）。
Size selection:
1.Base width (net size); 2m, 3m (common size), 4m, 5m, 6m;
2.Base length (net size): 3m x N (integer of n 1).
开窗机选择：
电动开窗机
电压：220V
功率：250W
开窗时间：60s内
开机时间：60S内
热保护阙的触发温度可选（68093P ）
Window opener selection:
Electric window opener
Voltage: 220V
Power: 250W
Window opening time: within 60s
Startup time: within 60s
The trigger temperature of the thermal protection valve is optional (68 P/93 P)

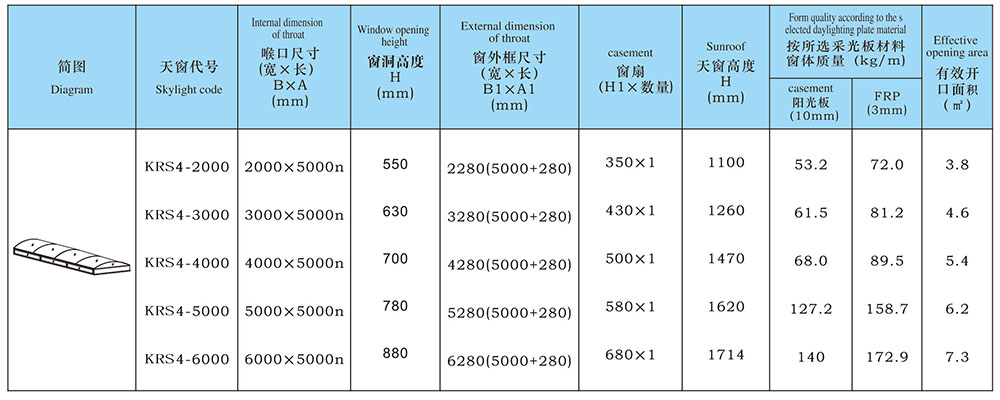

圆拱型侧开型釆光排烟天窗选用表
Table for Selection of Circular Arch Side Opening Daylighting and Smoke Exhaust Skylight
注：1、天窗制作不包含天窗基座；
2、天窗选用表为标准窗型选用参考表，当有特殊要求时，可根据具体要求由生产厂家设计制作，n为洞口长度模数的倍数，由工程设计确定。
Note: 1. The skjdight fabrication does not include the skjdight base;
2. The skylight selection table is a reference table for standard window type selection. If there are special requirements, it can be designed and made by the manufecturer according to specific requirements, n is the multiple of the opening length modulus, which is determined by the engineering design.
