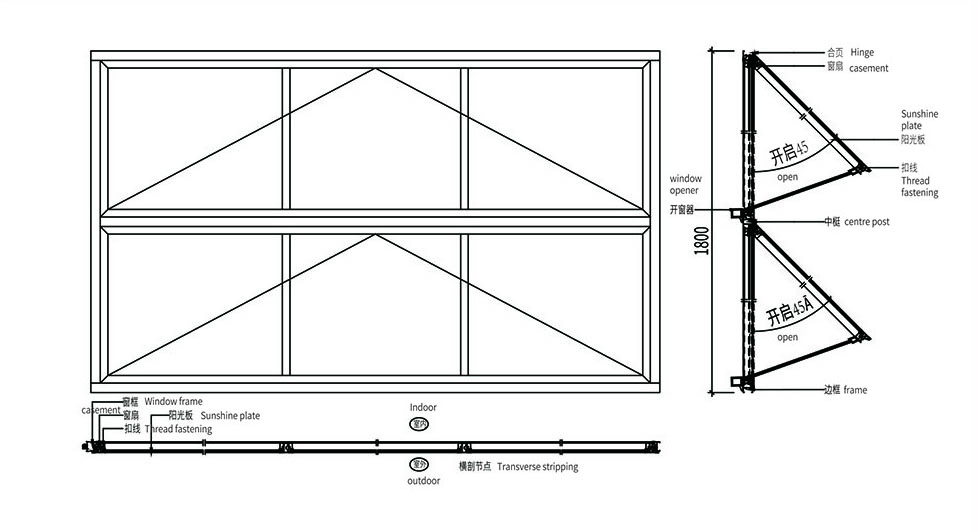

侧开型采光排烟天窗适用于工业厂房的纵向天窗，天窗的长度与钢天窗架长度一致。洞口高度有1200mm、1500mm、1800mm、 2400mm和3000mm五种，窗扇高度有450mm、600mm和750mm三种，也可按洞口高度做窗扇的组合。窗框由铝合金型材构 成，窗扇为铝合金窗。适用于任何天气都要通风、排烟的建筑，可避免出现飘雨、飘雪的现象。开启方式为最大开启角度为45°。 可与消防联动，可做智能控制（雨感、烟感、温感等）、遥控控制、手动控制、来控制天窗的启闭与开启角度。
The Nestor side open type daylighting and smoke exhaust skylight is suitable for the longitudinal skylight of the industrial plant, the length of the skylight is consistent with the length of the steel skylight frame. The height of the hole is 1200mm, 1500mm, 1800mm, 2400mm and 3000mm, and the height of the window sash is 450mm, 600mm and 750mm. The combination of the window sash can also be made according to the height of the hole. The window frame is composed of aluminum alloy profiles, and the window sash is an aluminum alloy window. Applicable to any weather, ventilation, smoke exhaust building, can avoid the phenomenon of falling rain, falling snow. The maximum opening angle is 45 0 . Can be linked with the fire, can do intelligent control (rain, smoke, temperature, etc.), remote control, manual control, to control the opening and closing of the skylight and the opening angle.
