屋脊通风器是厂房屋面配套首选通风设备，它美观大方.轻盈流畅，立体感强，防水效果好。专业化生产和设计，其性能体现 用户的使用要求，其技术构造紧凑，阻力系数小，通风散热快，比传统天窗所需缩短20-30%,补传统天窗防水不够严密，换 气量不足等方面的缺点，可做电动、手动开启设置、可带消防联动装置、可雨感、风感等智能控制。
Roof ventilator is the preferred ventilation equipment for the roof of the plant, which is beautiful, elegant, light and smooth, and has a strong three-dimensional sense, Good waterproof effect, professional production and design, its performance reflects the user's use requirements, its technical structure is compact, the resistance coefficient is small, the ventilation and heat dissipation are fast, which is 20-30% shorter than the traditional skylight. It makes up for the shortcomings of the traditional skylight in terms of insufficient waterproof, insufficient air exchange, etc. It can be used for electric and manual opening settings, fire linkage, rain sense, wind sense and other intelligent controls.

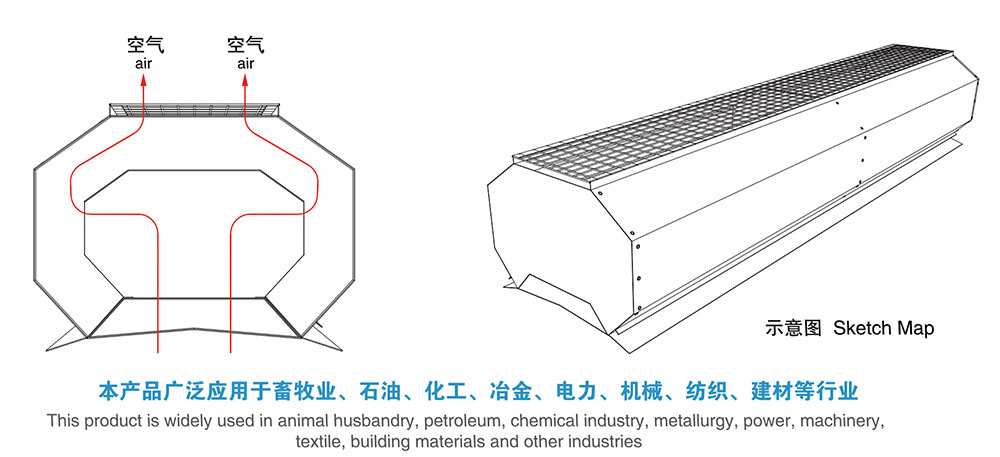

★结构图 Structural drawing

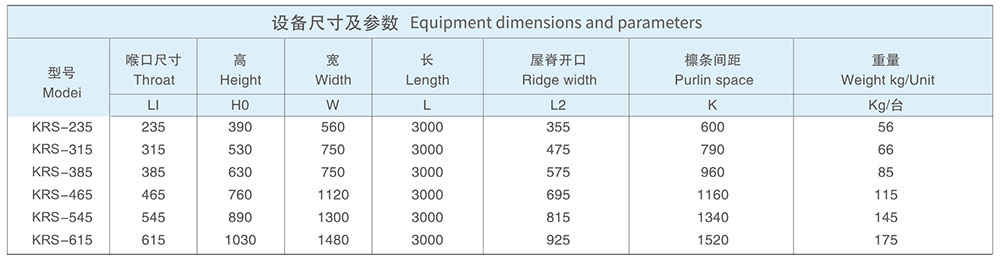

设备尺寸及参数 Equipment dimensions and parameters
该通风器荷载较轻，整机运往现场，安装于屋脊处，防水性能较好，使用安全，适用于各类厂房（可根据客户的要求设 计手动、电动开闭装置）。
The ventilator is light in load, transported to the site and installed at the ridge, with good waterproof performance and safe use.
It is applicable to all kinds of plants （can be set according to customer requirementsManual and electric switching devices）.
注：
1.本表中的数据为参考值，标准值以实际提供产品为准。
2.活动盖板的控制方式为：手动和电动两种。
Note:
1. The data in this table are reference values, and the standard values are subject to the products actually provided.
2. The control mode of movable cover plate is manual and electric.

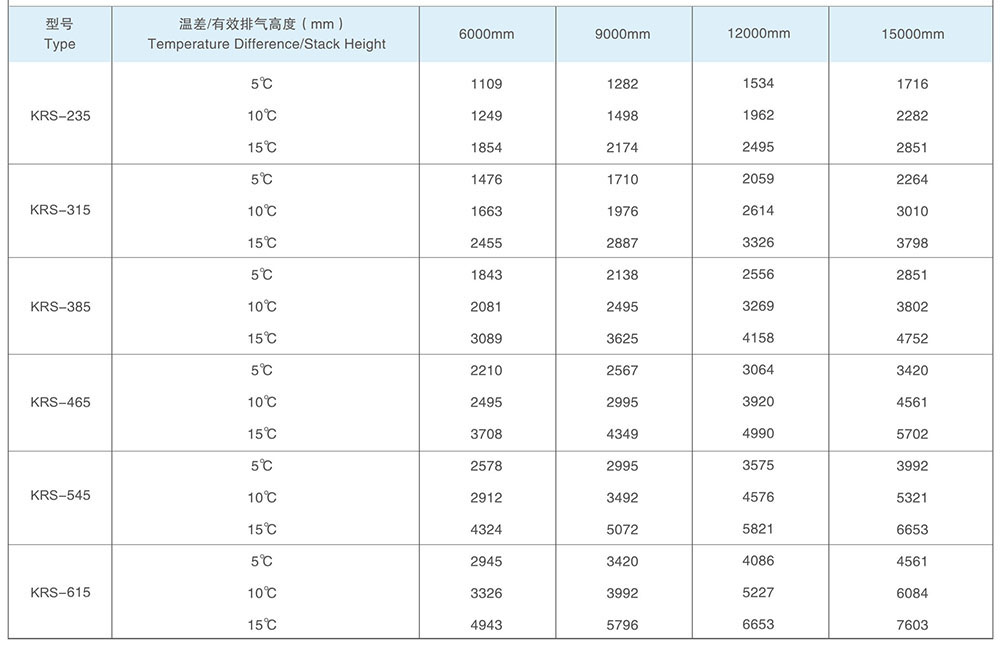

屋脊通风器的排气参考值 Exhaust reference value of ridge ventilator
注：以上所列排气参考值的计算条件为：设定室外温度20P;重力加速度9.8m/sA2;室外平均风速1.2m/s;孔口流量系数为0.84。
Note: The calculation conditions of the exhaust reference values listed above are: set the outdoor temperature to 20°c; Gravity acceleration 9.8 m/sA2; Outdoor average wind speed 1.2m/s; The orifice flow coefficient is 0.84.
